Lightnin Mixers – Top Entry

SPX Lightnin has a process solution for a wide variety of mixing applications. Mixing applications can be broken down into the following mixing duties:

  • liquid-liquid,
  • liquid-solid,
  • gas-liquid,
  • gas-liquid-solid and fluid motion.

Many applications are often a combination of these duties and thus having a full understanding of each of these areas is crucial to recommending an optimized design that is also economical.

VSA Pillowblock Mixers
  • For Pulp and Paper applications
  • Robust design with large bearing lives to combat the arduous nature of Paper and Pulp mixing processes.
  • A312 Impeller Gives You Process And Mechanical Efficiency The LIGHTNIN A312 paper stock impeller provides 30% more flow for the horsepower than other high-efficiency paper stock impellers
  • Pillowblock Bearings – LIGHTNIN.s VSA agitator was designed for flexibility to match customer preference. The VSA can accommodate bearings from various manufacturers, as well as split, unsplit or a combination. High rating over sized Pillowblock bearings provide a minimum B-10 life of 200,000 hours
31-vsf-20retouched
VSF

Purpose-built agitators for harsh FGD (Flue Gas Desulfurization) environments. The rugged gearbox is designed with a high service factor for long life, while removable couplings make maintenance easier. An FGD Slurry seal is designed to further lengthen the availability of the unit in operation.

FGD applications are extremely abrasive with high HS concentrations and high % Solids that require the use of Super-duplex stainless steels

28-70-series

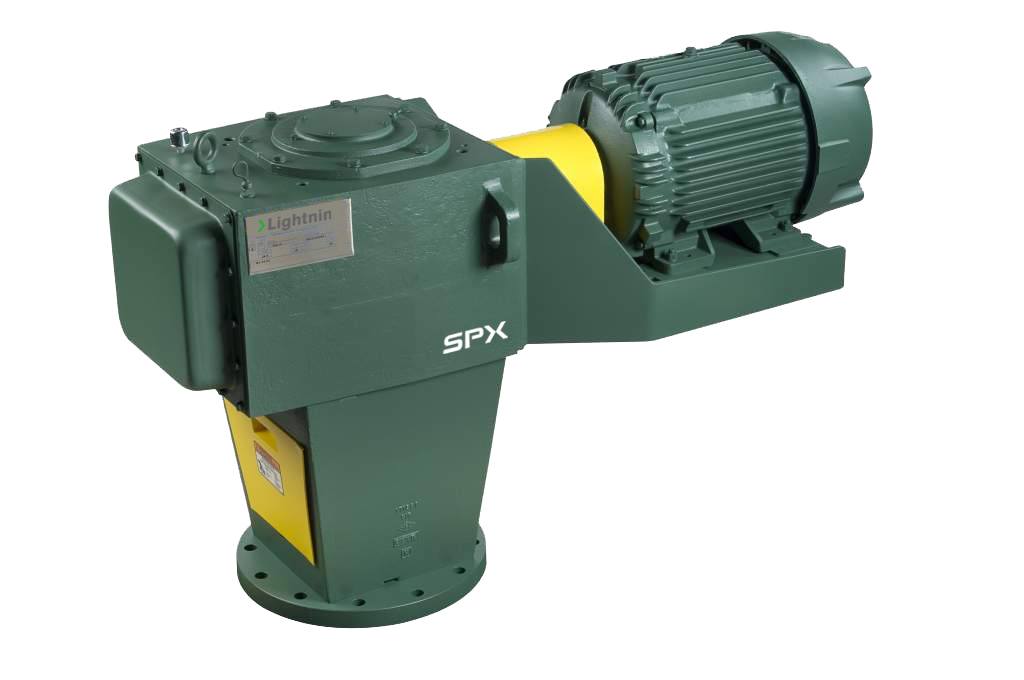

70 Series Mixers

Available with motor pedestals up to 30kw (40hp) to ensure motor alignment. Motor brackets are available for all sizes.

Bearings are sized far beyond AGMA requirements for long service life

Mechanical seals are 100% factory tested and feature a cartridge design for easy, convenient replacement.

Helical change gears are easy to replace to meet new or changing processing requirements

Available in 0.75kw to 150kw (1hp to 200hp) with speeds from 9 to 280 rpm

Self-setting seals

All guarding meets OSHA and CE requirements and available options meet ATEX standards.

29-80-series

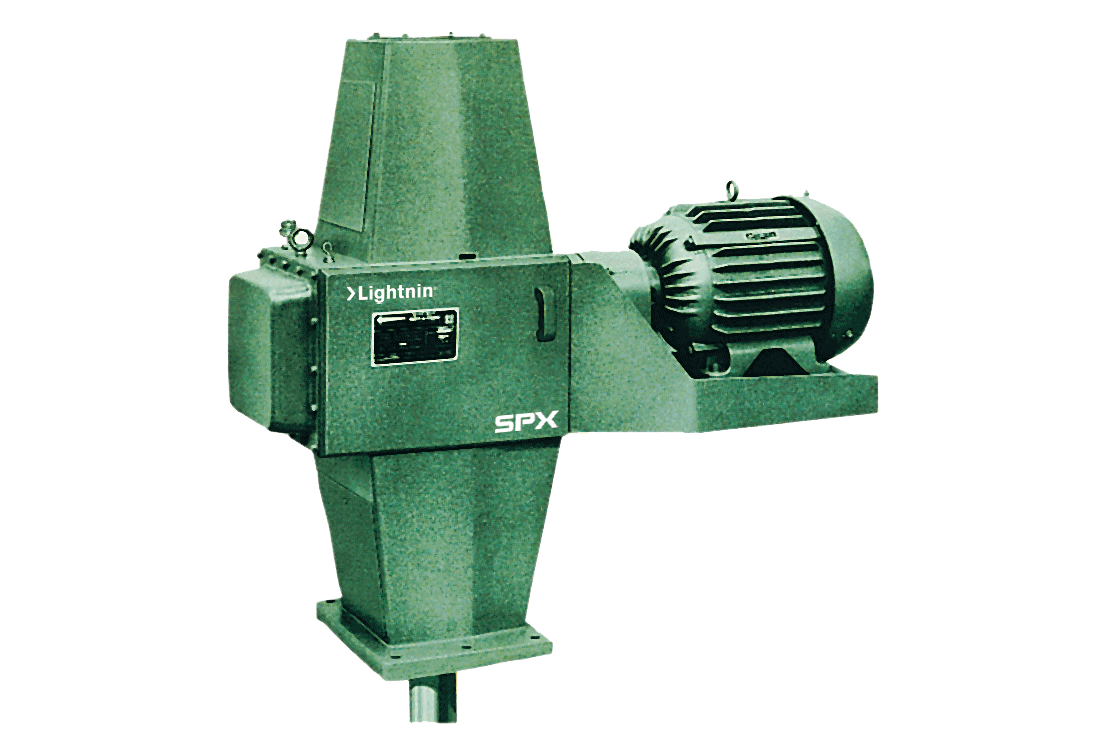

80 Series Mixers – Chemical Processing, Wastewater, Mining Minerals

Available with motor pedestals up to 30kw (40hp) to ensure motor alignment. Motor brackets are available for all sizes.

Exclusive hollow quill drive protects the gear train from severe shaft flexure.

Bearings are sized far beyond AGMA requirements for long service life

Mechanical seals feature a cartridge design for easy, convenient replacement.

Helical change gears are easy to replace to meet new processing requirements.

Available in 0.75kw to 150kw (1hp to 200hp) with speeds from 9 to 280 rpm

Self-setting seals

All guarding meets OSHA and CE requirements and available options meet ATEX standards.

30-700-800-series

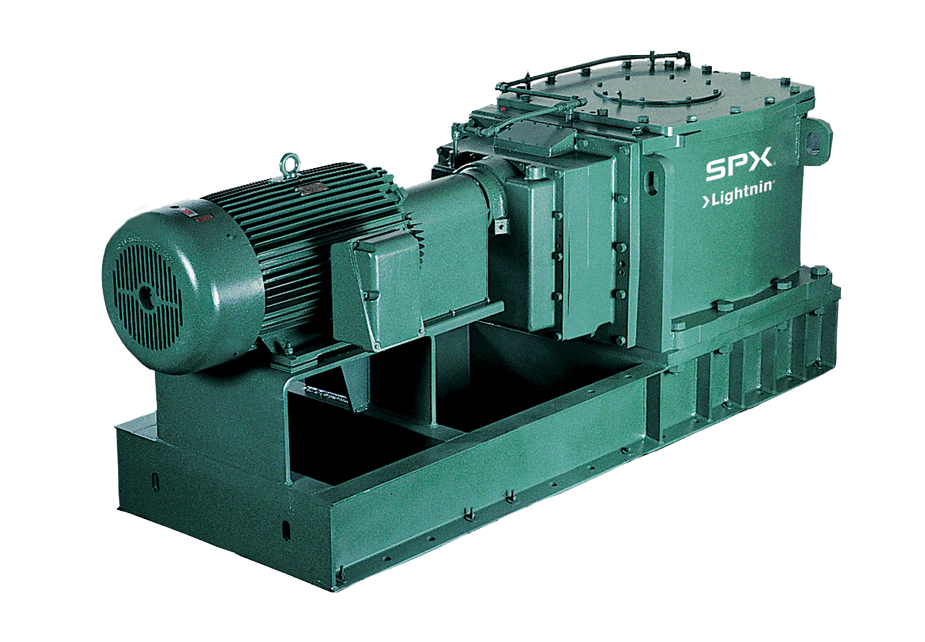

Lightnin 700/800 Mixers – Chemical Processing, Wastewater, Mining Minerals

LIGHTNIN 700/800 Mixers are designed to provide reliable service in the largest, most demanding applications, from pharmaceutical fermentation and large-scale chemical processing to minerals processing and heavy sludge waste treatment. The workhorse of the Lightnin mixer drive range with over 40,000 placed in service since its introduction in 1970, the 70 Series mechanical design technology is the industry’s most proven agitator drive technology.

  • Exclusive hollow quill drive protects the gear train from severe shaft flexure.
  • Bearings are sized far beyond AGMA requirements for minimum maintenance and long service life
  • Heavy-duty motor mount is standard
  • Horsepower from 25 to 1250 and speeds from 230 to 11.4 rpm
  • Choice of replaceable cartridge seals

LIGHTNIN PORTABLE MIXERS

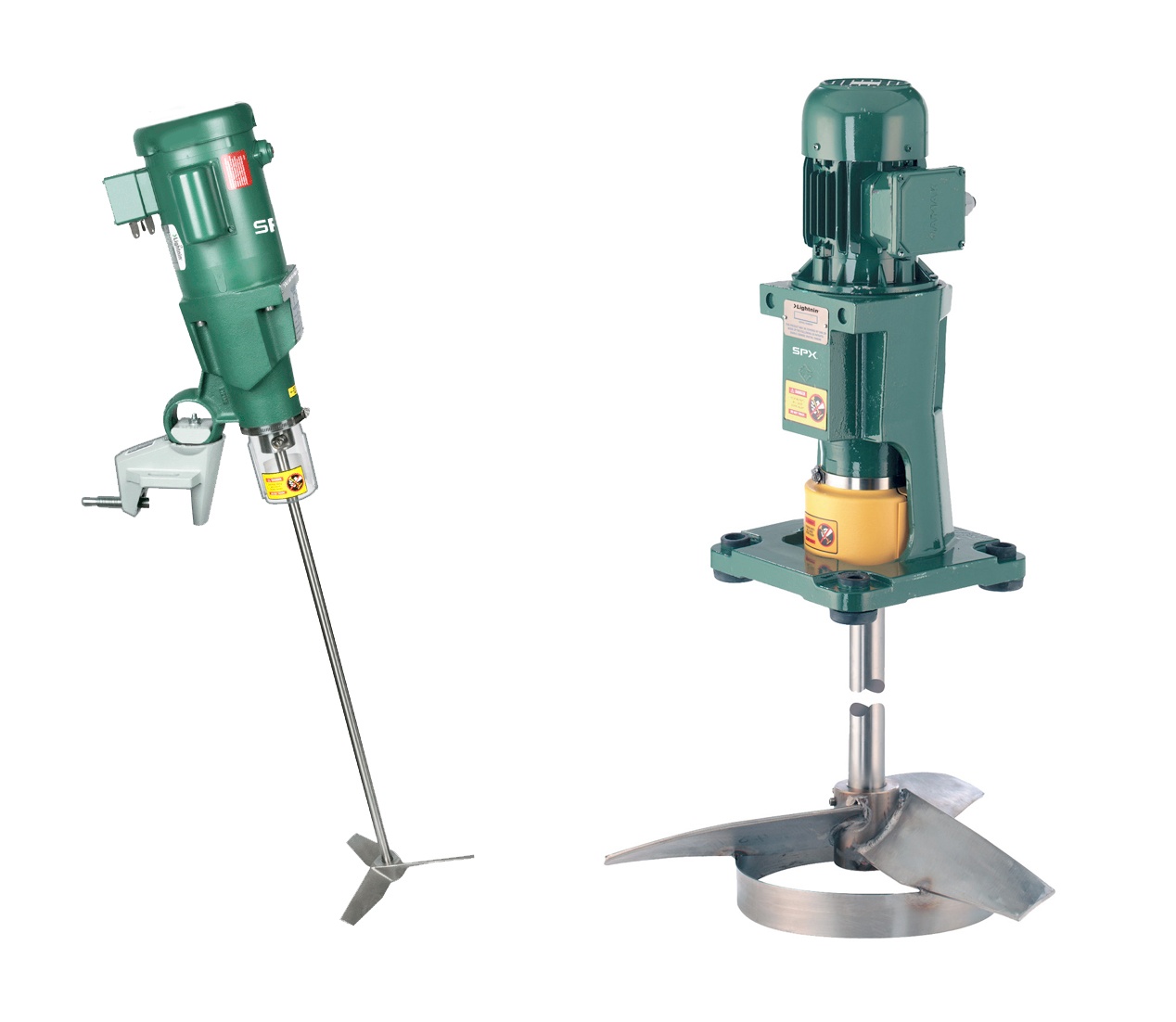

Enhanced Classic Line (ECL)

The Enhanced Classic Line (ECL) are fixed mount and portable mixers that offer the highest performance and quality, giving our customers an even stronger and more versatile product.

  • Direct- and gear-drive mixers for a wide range of mixing applications
  • Direct-drive mixers are recommended for dispersing powders and small batch mixing
  • Gear-drive mixers feature two available lower speeds and higher torque for use with larger batches and a range of viscosities
  • Larger output shaft bearings for longer shafts and longer life
  • Positive chuck grips the mixer shaft to prevent unintentional shaft release
  • Rugged Dura-Mix motor designed for long life
  • One-piece aluminum housing
  • Explosion-proof motors are available
ecl_joint_picture
38-gp2-rod-mount-a

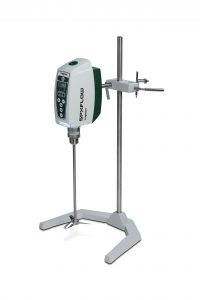

GP2 Mixer
General Purpose for Lab or Industrial Applications

The Lightnin GP2 mixer has an integrated digital control and feedback system that allows the user to precisely and easily control the mixing process. This coupled with Lightnin Impeller configuration know how, produces consistent results that is critical for validation and scale up.

“SPX FLOW Lightnin Mixing know how for process validation and high value process applications” Ideal for simple blending, solids suspension, high-viscosity and gas-liquid applications.

Designed for open tank applications, the Lightnin GP2 is Multifunctional, Reversing and comes with a Countdown Timer.

  • Brushless DC motor – reduced maintenance.
  • Automatic overload protection – increased life
  • Variable speed from 40 – 2000 rpm
  • Torque100Ncm (9 in-lbs.)
  • .07KW (1/10HP)
  • Through Stainless Steel Ø10mm (Ø3/8”) Shaft
  • Rod and Universal Clamping configurations
  • Clockwise and counter clockwise rotation
  • Countdown timer – mixing stops when time is completed
  • Low energy LED mixing light
  • Global availability, with UL, CSA, CE, RoHS certification, WEEE compliance and IP42 rating
  • Adjustable Ø10mm (Ø3/8”) shaft with one end turned down to Ø8mm (Ø5/16”) – non retrofit models
  • A310 64mm, (2.5”) and A310 86mm, (3.4”) impellers as standard – non retrofit models

Mag Mixer MBI

For Sanitary Applications

The Lightnin MagMixer™ MBI sets the standard for cleanability, durability and performance in food, pharmaceutical, biotech and personal care applications. Features include a dry-running Hyper-Flo™ bearing design, one-piece tank plate and flow-through channels, totally eliminating contamination concerns. These technologically-advanced mixers are fast-becoming the critic’s choice for sanitary

processing and storage applications – including plasma fractions, vaccines, injectables, media suspensions, buffer prep, cell culture and beverage blending.

DESIGNED FOR DURABILITY AND SUPERIOR PERFORMANCE

  • Suitable for up to 30,000 liters (7,925 gal.) and viscosities up to 1,000 cp. (Viscosity limits depend on tank volume)
  • Available CE Marked.
  • Comes with Lightnin’s 100% process guarantee.

DESIGNED FOR EASY MAINTENANCE and Maximum Cleanability

  • Unlike sleeve bearings, which must be sent back to the factory for replacement, Hyper-Flo bearings can be replaced on-site using only a pair of snap-ring pliers.
  • Motors and drive assemblies weigh from 12-24 kgs (25-51 lbs.), depending on size, for easier handling.
  • Drive can be rotated through 360º for easy maintenance access and to minimize interference with other external tank components.
  • Common spare parts and same bearing design used in all four sizes of MBI.
9a

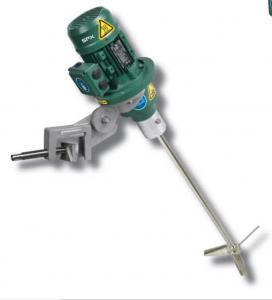

Nettco I Series Mixers
For Batch Mixing, Make Up and Tote Tanks, Small Pilot Scale Lab Mixing

The Nettco i-Series mixer is available in a wide range of mixing and mounting configurations utilizing a unique modular assembly design. With one mixer it is possible to configure a clamp-on, open tank, or sealed mixer design, plus this mixer can be quickly converted from one mounting arrangement to another. Modifying the mounting configuration can be accomplished in less than two minutes.

  • Highest quality at a competitive price
  • For tank sizes: 0.1 – 20 m3 (25 – 5,000 gal.)
  • Designed for OEM Systems Suppliers and end users in general chemical industries
  • Wide range of impellers and mounting options
39i
40-nettco-s

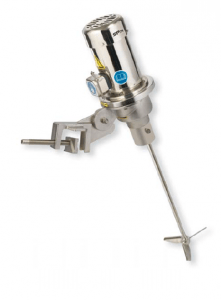

Nettco S Series Mixers
Application – meets 3a and ec 1935:2004 standards for the food industry

The Nettco S-Series sanitary mixer is available in a wide range of mixing and mounting configurations utilizing a unique modular assembly design. With one mixer it is possible to configure a clamp-on, open tank, or sealed mixer design. This mixer can be quickly converted from one mounting arrangement to another. Modifying the mounting configuration can be accomplished in less than two minutes.

  • Highest quality at a competitive price
  • For new and existing tank sizes: 0.1 – 20 m3 (25 – 5,000 U.S. gal.)
  • Designed for Diary, Beverage, Oil, Prepared Foods and more
  • Wide range of impellers and mounting options

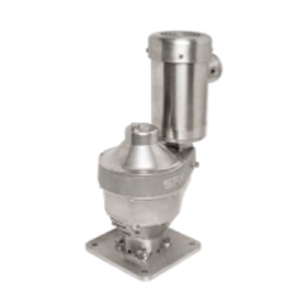

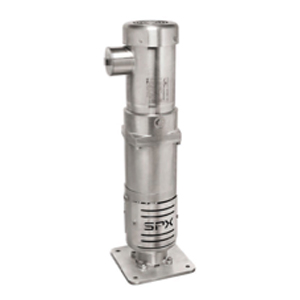

SanStar Series Mixers
For biotechnology & pharmaceutical industries

Designed to fit the needs of the biotechnology and pharmaceutical industries, the Stainless Steel In-line (SSi) and Stainless Steel Offset (SSO) are purpose built with your needs in mind. Suitable for buffer and media preparation, fermenters, bioreactors, product recovery, and bulk pharmaceutical processing, these products combine Lightnin’ s experience in mixer design and clean operations.

11a
11b

IMPELLER TECHNOLOGY – CORE TECHNOLOGY IMPELLERS

A310/A510
Low blade solidity hydrofoil, recommended for low viscosity blending and solid suspension applications:
  • Varying tip chord angle allows for further optimization of mixer selection
  • Maximizes fl ow generation while minimizing fl uid shear
  • The A310 is standard for all Lightnin gear drive portable mixers
  • Generates the same fl ow as a pitched bladed turbine (A200) for 60% of the power and 50% of the torque
A315
High solidity hydrofoil design recommended for gas–liquid dispersion and mass transfer applications:
  • High blade solidity improves gas handling by up to 3 times that of a conventional hydrofoil impeller such as the A510
  • Generates strong axial fl ow which reduces staging that occurs with radial fl ow impellers in tall reactors
  • Can improve mass transfer by 30% compared with a Rushton impeller (R100)
  • Operates at lower torque than a conventional radial fl ow impeller, thus reducing capital costs
A320
High solidity hydrofoil design recommended for high viscosity blending applications:
  • High effi ciency wide bladed impeller design with high fl ow/power ratio
  • Improved axial fl ow at low Reynolds numbers (Nre < 500) reduces power requirements up to 50% over a pitch bladed turbine (A200) for equal blending performance
  • Has also been successfully used for gas handling applications
R130
Recommended for high shear mixing and gas dispersion applications:
  • Half pipe shaped blades improves gas handling over R100 impeller while reducing torque requirements by up to 40%
  • Radial design provides shear to achieve good contacting for liquid-liquid and gas-liquid dispersions and emulsions

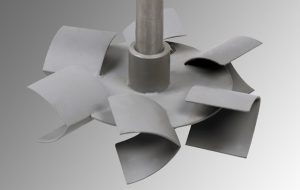

R135
Parabolic radial fl ow impeller recommended for high shear mixing and gas dispersion applications:
  • Optimized parabolic blade shape improves gas handling ability by 20% and reduces torque requirements by 40% over an R130
  • Radial design provides shear to achieve good contacting for liquid-liquid and gas-liquid dispersions and emulsions

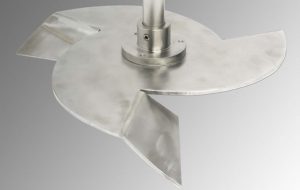

CLEAN EDGE IMPELLER
Designed for municipal waster water applications:

The Lightnin Clean Edge Impeller fills the need for use in services where a ragless impeller is either specified or required. Specifically designed for this demanding service, the Clean Edge remains free of fibrous debris while delivering blending performance equal to a hydrofoil impeller. Wastewater applications have stringy, solids called “rags” by industry personnel. This fibrous material causes equipment to foul, maintenance costs to increase due to added downtime through plant shutdowns, and mechanical damage. The fouling potential of these rags causes mixing impellers to lose their efficiency, vibrate and overload.

The Clean Edge impeller does not foul. It prevents rag accumulation and keeps the mixer operating smoothly at design power and without harmful vibration or tripping out due to overload.

  • Patented impeller achieves steady and stable operation in harsh operating conditions.
  • Clean Edge exhibits the same blending efficiency as a hydrofoil impeller and can often be a drop-in replacement for your existing mixers.
  • Installation of a Clean Edge impeller will increase plant up time, reduce maintenance, and eliminate failures related to rag buildup.
  • The power and fl ow characteristics of the Clean Edge impeller make it the ideal retrofit for any under performing system.
A333 CLEAN EDGE IMPELLAR
Specifically designed as a non-stringing axial flow impeller:
  • Patented unique blade design resists ragging, making it suitable for low viscosity applications where ragging material is present
  • Produces strong axial flow in low viscosity fluids with similar flow/power performance as an A510 hydrofoil
  • Clean Edge exhibits the same blending efficiency as a hydrofoil impeller and can often be a drop-in replacement for your existing mixers.
  • Installation of a Clean Edge impeller will increase plant uptime, reduce maintenance, and eliminate failures related to rag buildup.

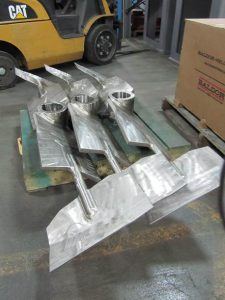

A620
Recommended for non-Newtonian transitional fl ow blending, where Reynolds numbers are between 50 and 500:
  • Optimal two bladed design creates down flow in the center and up fl ow at the wall, creating a complete turnover of tank’s contents
  • Provides similar blend time for less power than traditional open impellers (A320, A200) and less torque (lower cost) than traditional close clearance impellers (A400, R400)
  • Operates at high impeller diameter/tank diameter ratios, which improves heat transfer at the wall
  • Bolted construction available for tanks with small diameter manways
KT-3 Impellar
Designed for chemical, industrial and sanitary applications:

The KT-3 impeller is a three bladed impeller specifically designed for use as a close clearance lower impeller in a dish or shallow cone bottomed tank with a bottom outlet. The KT-3 impeller minimizes solids settling and prevents cavitation of the pump suction by swirling the tank contents and sweeping solids towards the outlet. The “wave” pattern shortens drainage times. The KT-3 does not “suspend” solids, however, this wave action constantly sweeps the bottom of the dish allowing for solids to move downward towards the outlet.

  • Low power consumption
  • Easily retrofitable
  • Removes most (~100%) of solids in dished vessel
